【ESP32-S3 LCD Driver Recommend】

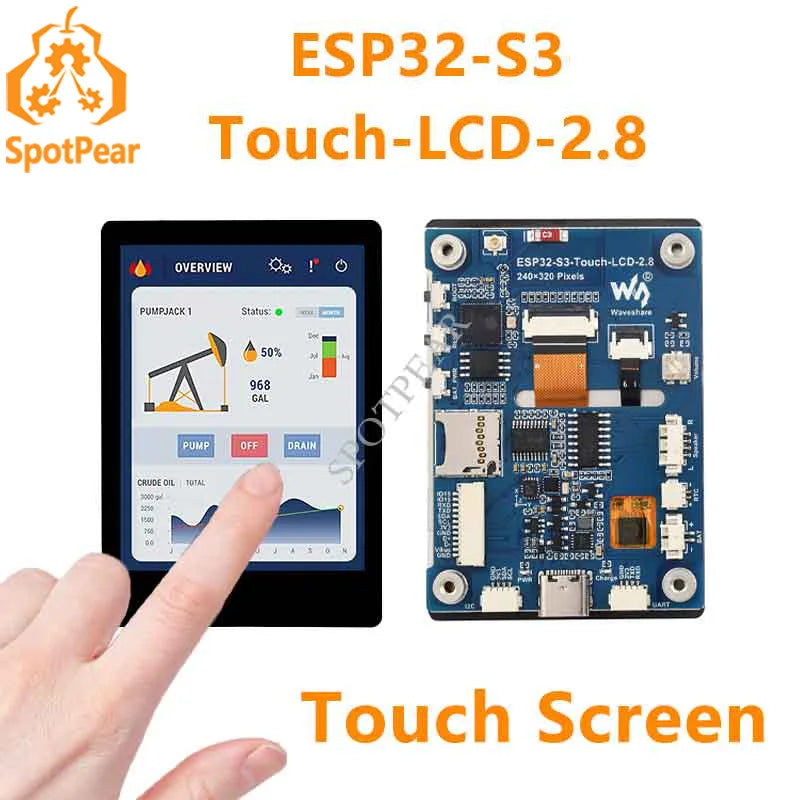

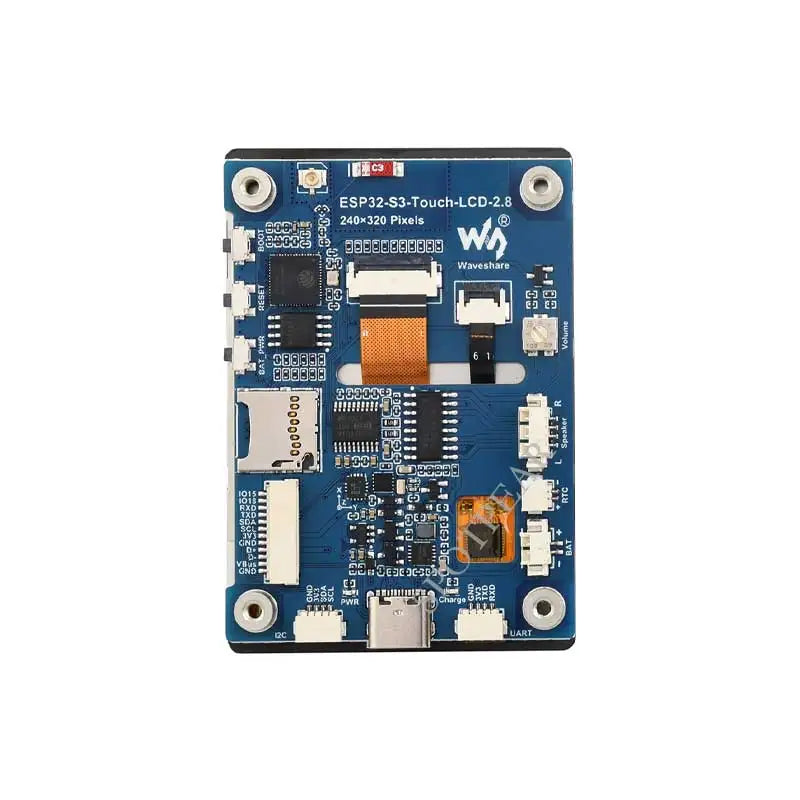

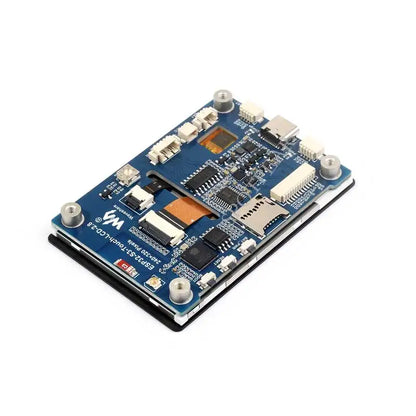

[] ESP32-S3-Touch-LCD-2.8

[] Integrates SPI Interface Display And 5-Point Capacitive Touch, Multiple Peripheral Interfaces

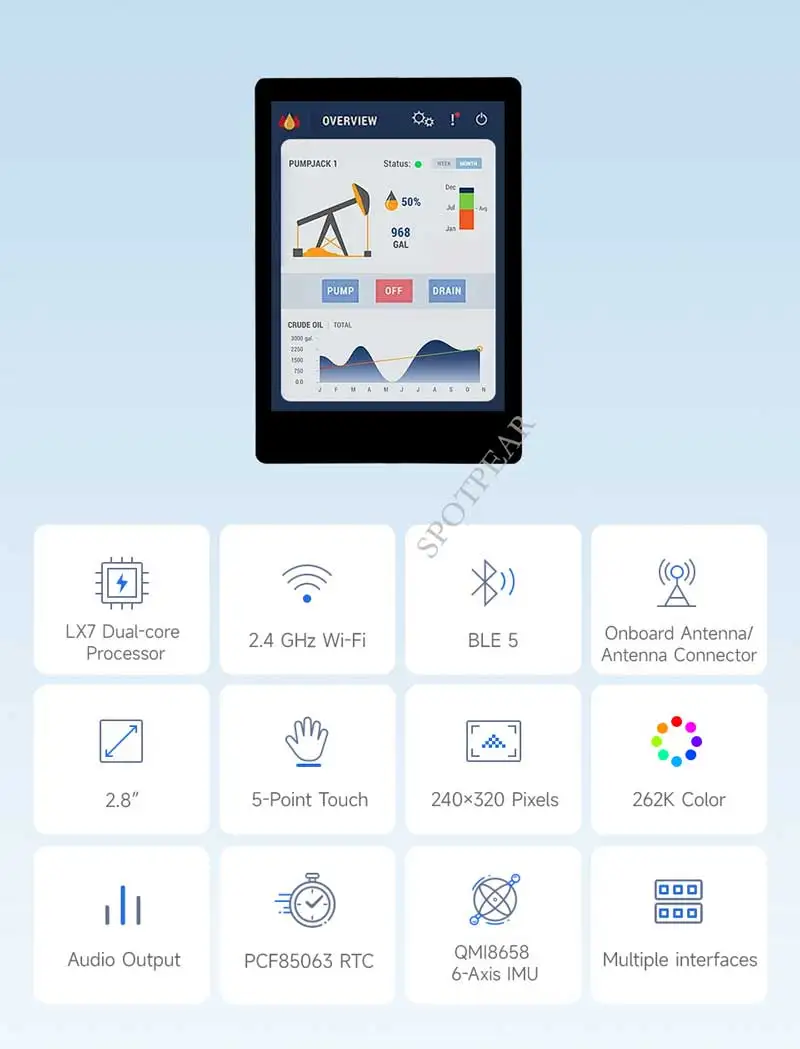

【Features】
ESP32-S3-Touch-LCD-2.8 is a microcontroller development board with 2.4GHz WiFi and Bluetooth BLE 5 support, integrates high-capacity Flash and PSRAM. Onboard 2.8inch capacitive touch screen can smoothly run GUI programs such as LVGL. Combined with various peripheral interfaces, suitable for the quick development of the HMI and other ESP32-S3 applications.

[] Equipped with high-performance Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency
[] Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna
[] Built-in 512KB SRAM and 384KB ROM, with onboard 16MB Flash and 8MB PSRAM
[] Onboard 2.8inch capacitive touch display, 240×320 resolution, 262K color
[] Supports capacitive touch control via I2C interface, 5-point touch with interrupt support
[] Adapting UART, I2C and some IO interfaces, integrates full-speed USB port
[] Onboard speaker, QMI8658 6-axis sensor, RTC sensor, TF card slot and battery recharge management module, etc.
[] Supports accurate control such as flexible clock and multiple power modes to realize low power consumption in different scenarios
【Application Scenarios】

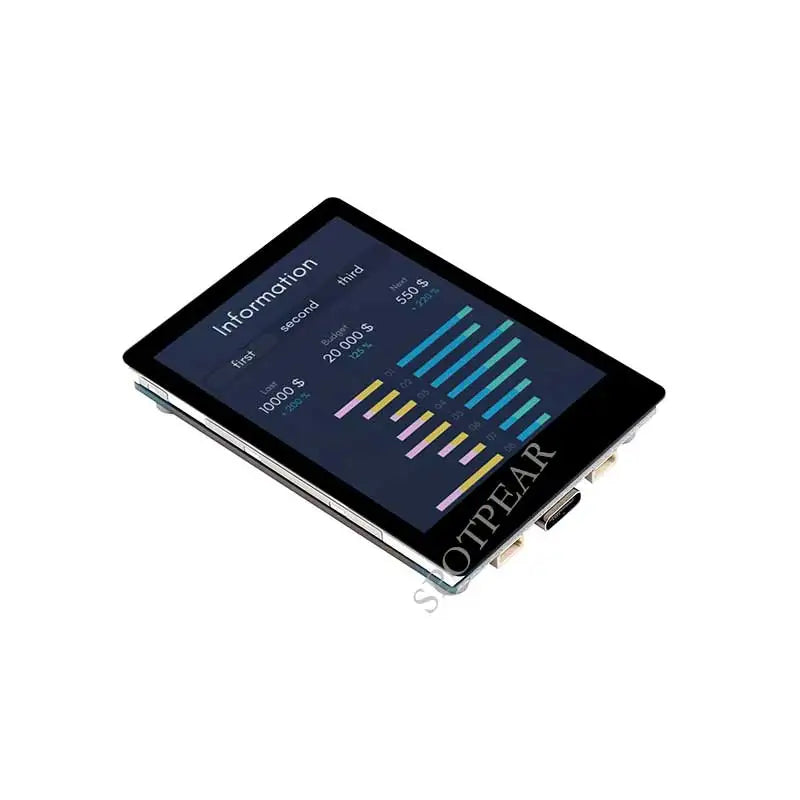

【IPS Display Panel】

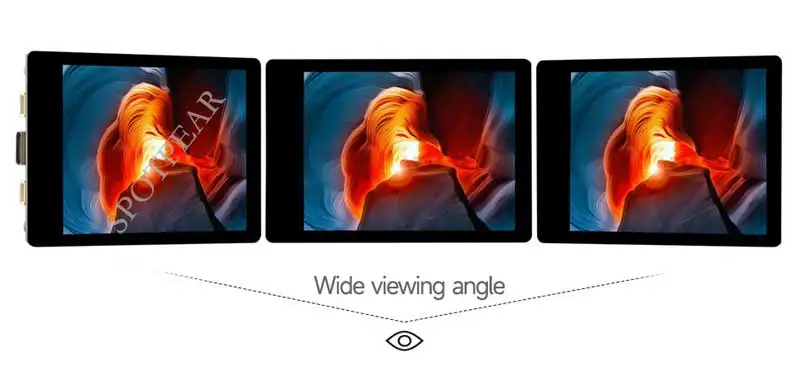

[] Excellent Display Performance, 262K Color, Wide Viewing Angle

【Capacitive 5-Point Touch】
[] Supports Touch Function With I2C Interface, 5-Point Touch For Flexible Operation And Smooth Multi-Point UI Interaction

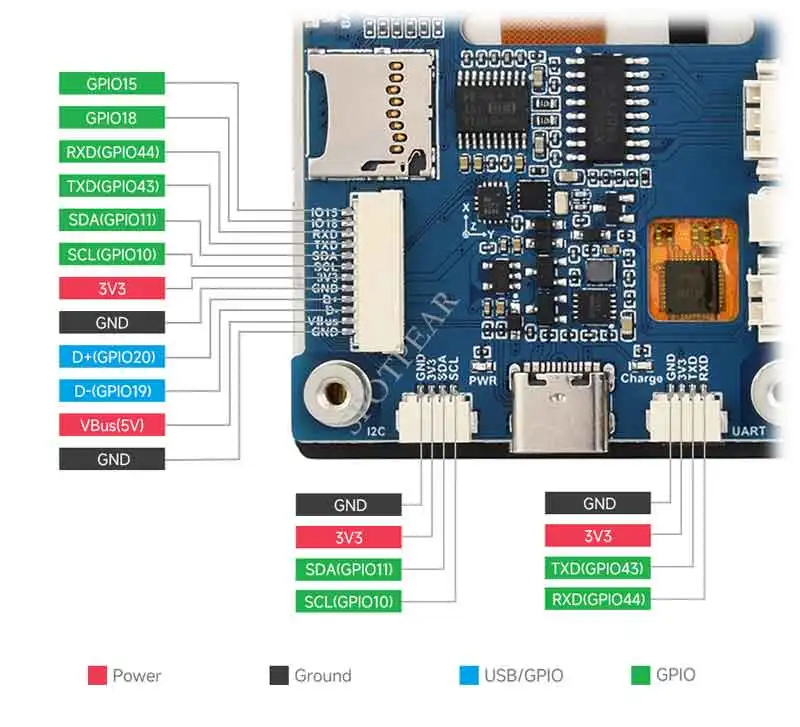

【Supports Multiple Peripherals】
[] Supports The Expansion Of Multiple Peripherals Via GPIO, UART And I2C Interfaces, Etc.

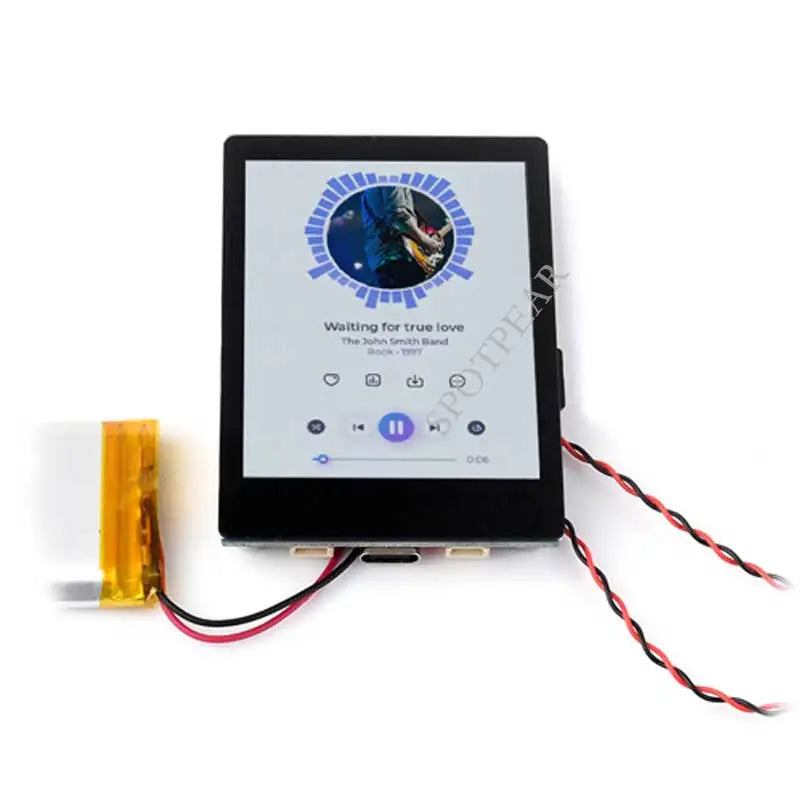

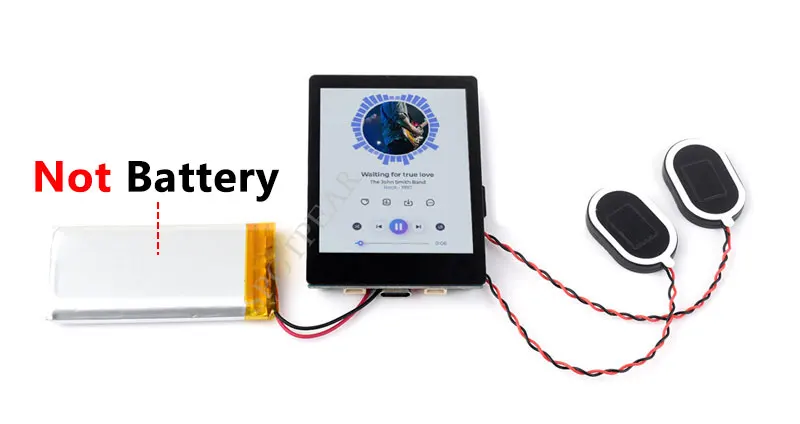

【Application Example】

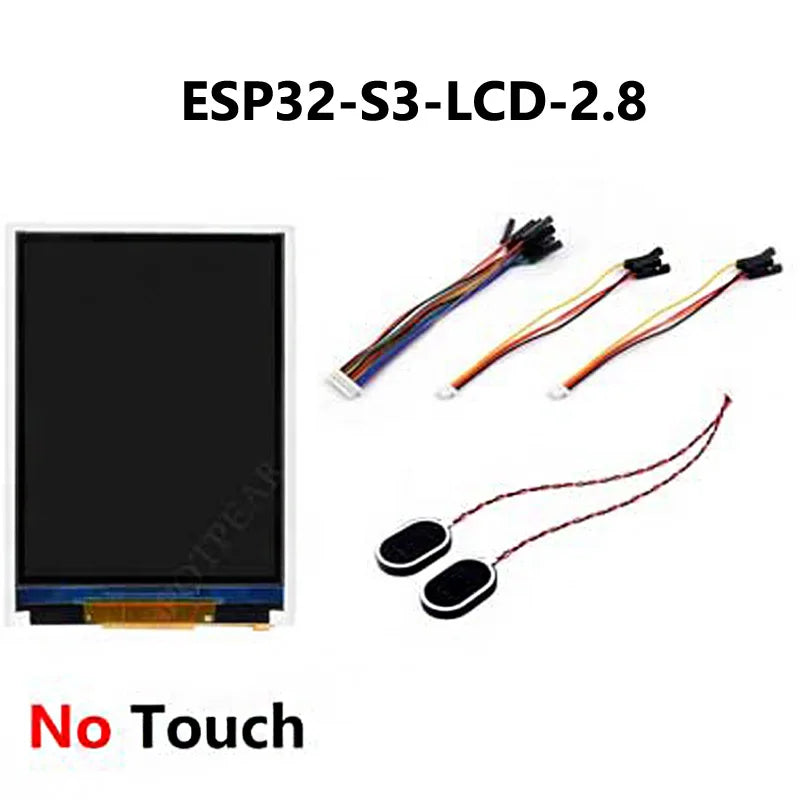

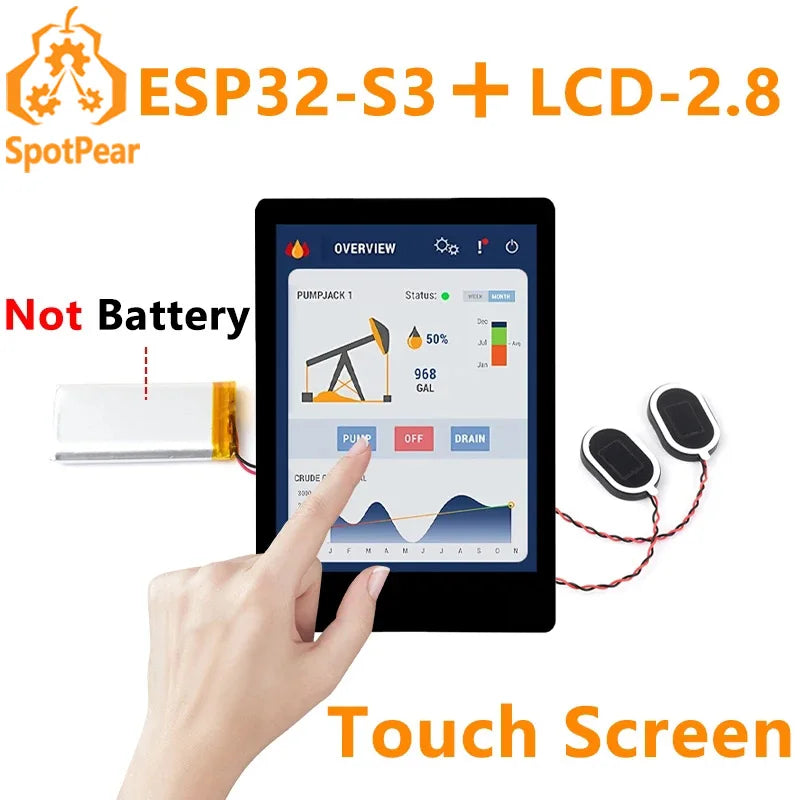

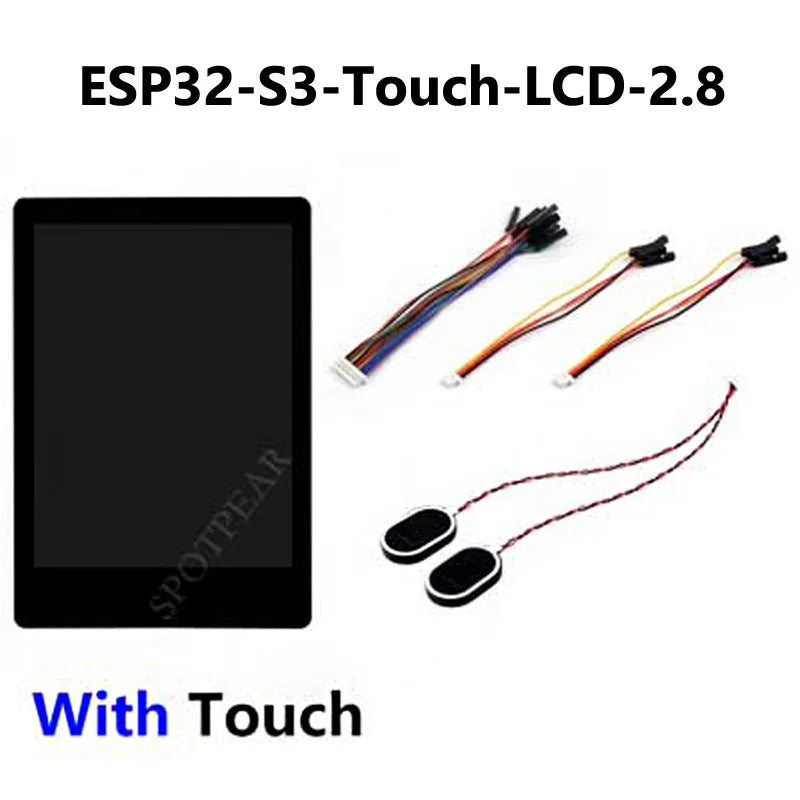

* the Lithium battery is NOT Included, please refer to the Package Content for the detailed part list

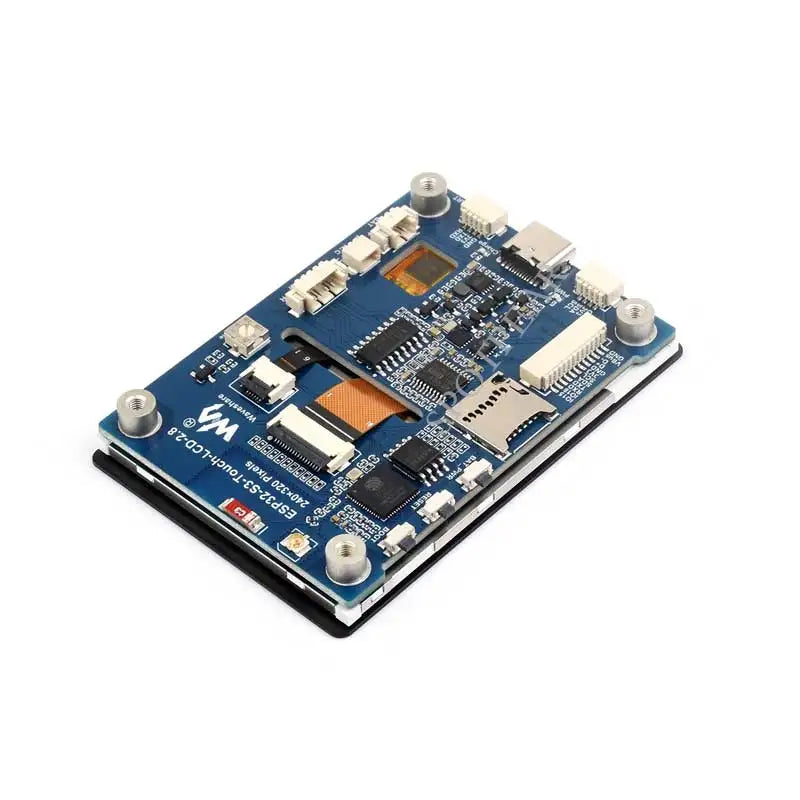

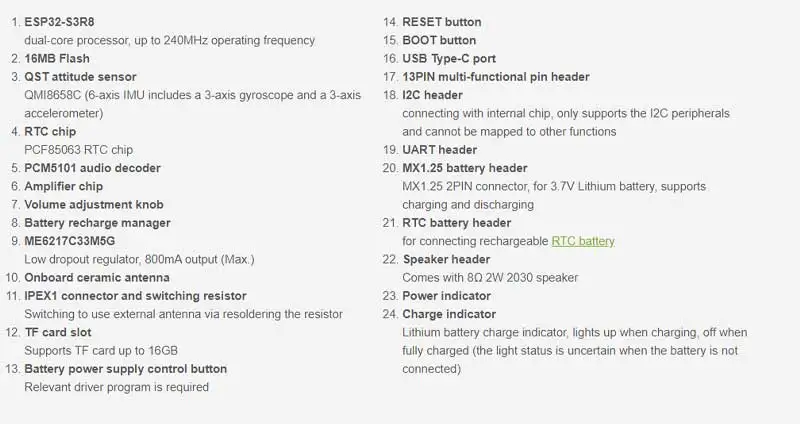

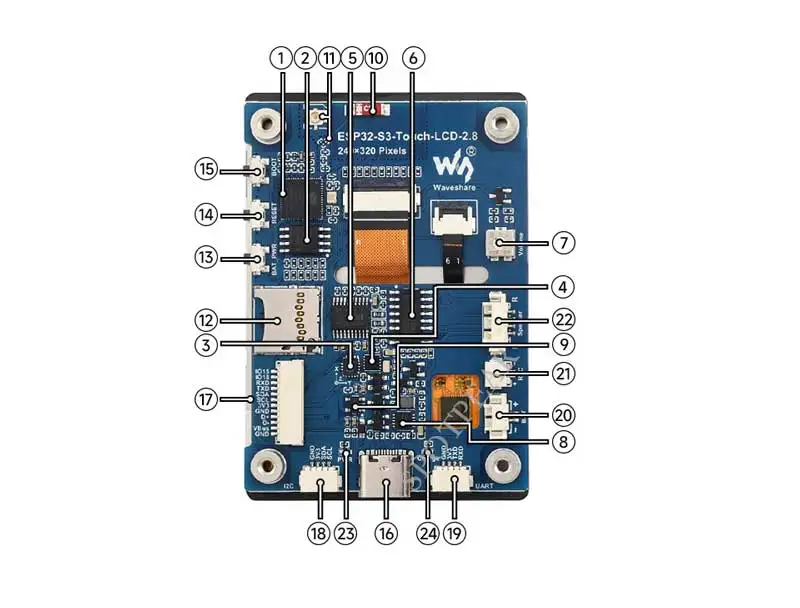

【What's On Board】

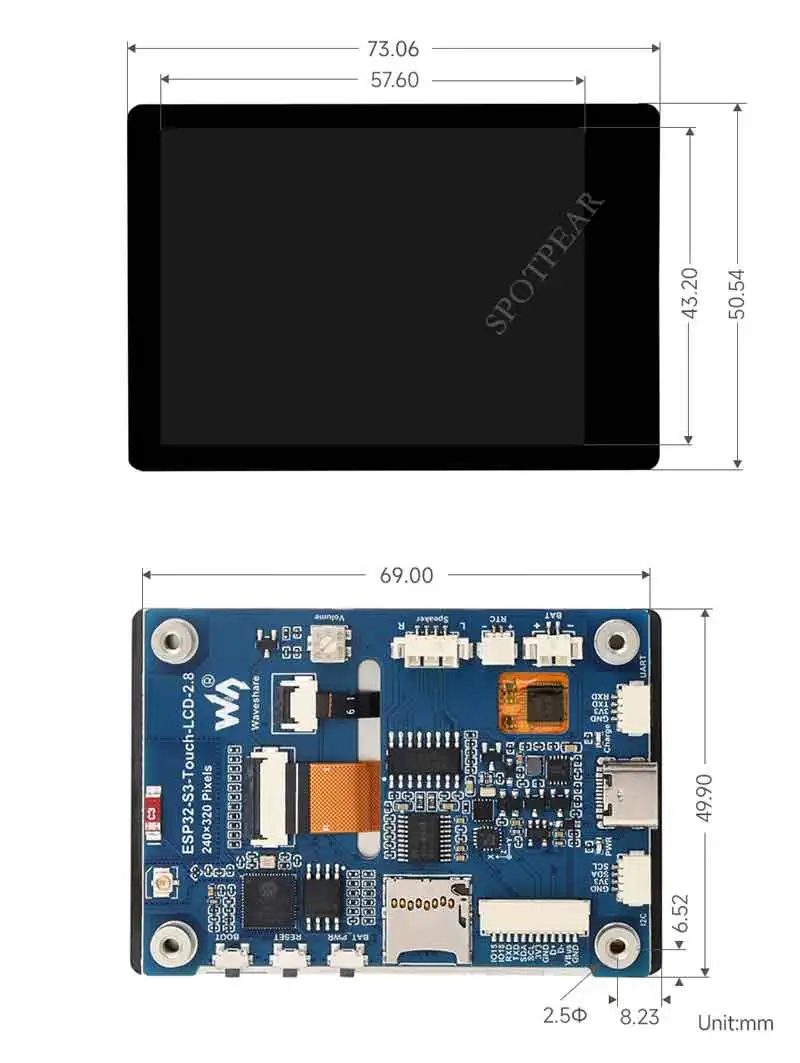

【Outline Dimensions】
