SPECIFICATIONS

Audio Format Support: MP3, WAV

Balanced Out: Yes

Battery Specification: External Power

Bluetooth: Yes

Body Material: Plastic

Brand Name: ARuiMei

Certification: CE

Choice: yes

Compatible Devices: Others

Designed for motor vehicle installation: No

External Memory: No

Function: Voice Recorder,FM Radio,Bluetooth

High-concerned chemical: None

Operation Mode: Touch Screen + Remote Control

Origin: Mainland China

Signal Noise Ratio: ≥89dB

Streaming Service Compatibility: other

Style: Car MP3

Supports FM: Yes

Supports Recording Function: Yes

semi_Choice: yes

Specifications

Model: JX-Y34B Without an amplifier, it cannot be directly connected to a speaker

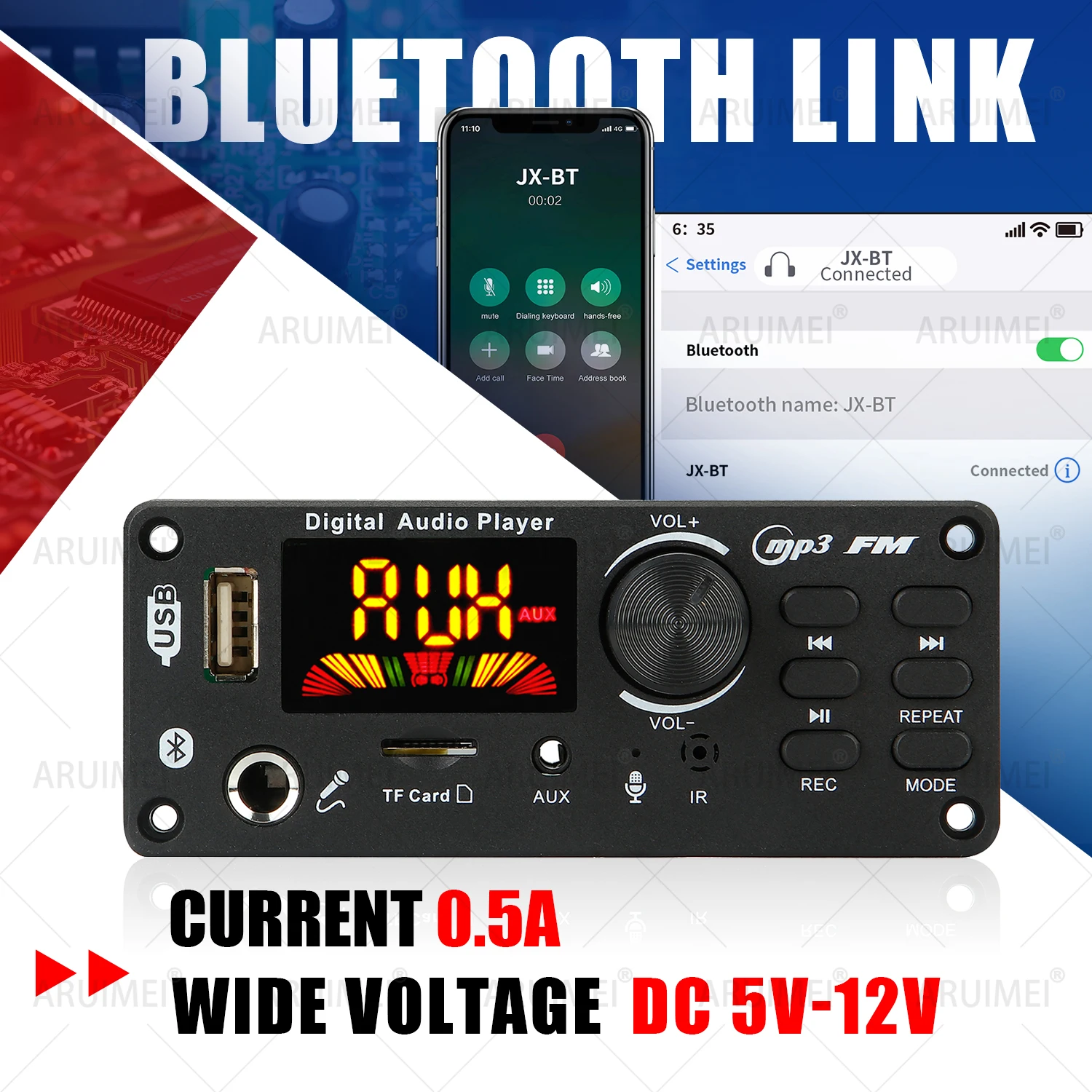

1. Bluetooth version 5.0

2. Support calling (press and hold the pause button to answer the call when there is an incoming call)

3. Supports recording. Recording only supports operation in TF mode or USB mode.

Press the REC button to start recording, press the REC button again to cancel recording and play the recording file; Exit recording mode by long pressing the pause button. When recording, it is necessary to connect a storage device, such as a USB flash drive or TF card

4. Support power-off memory

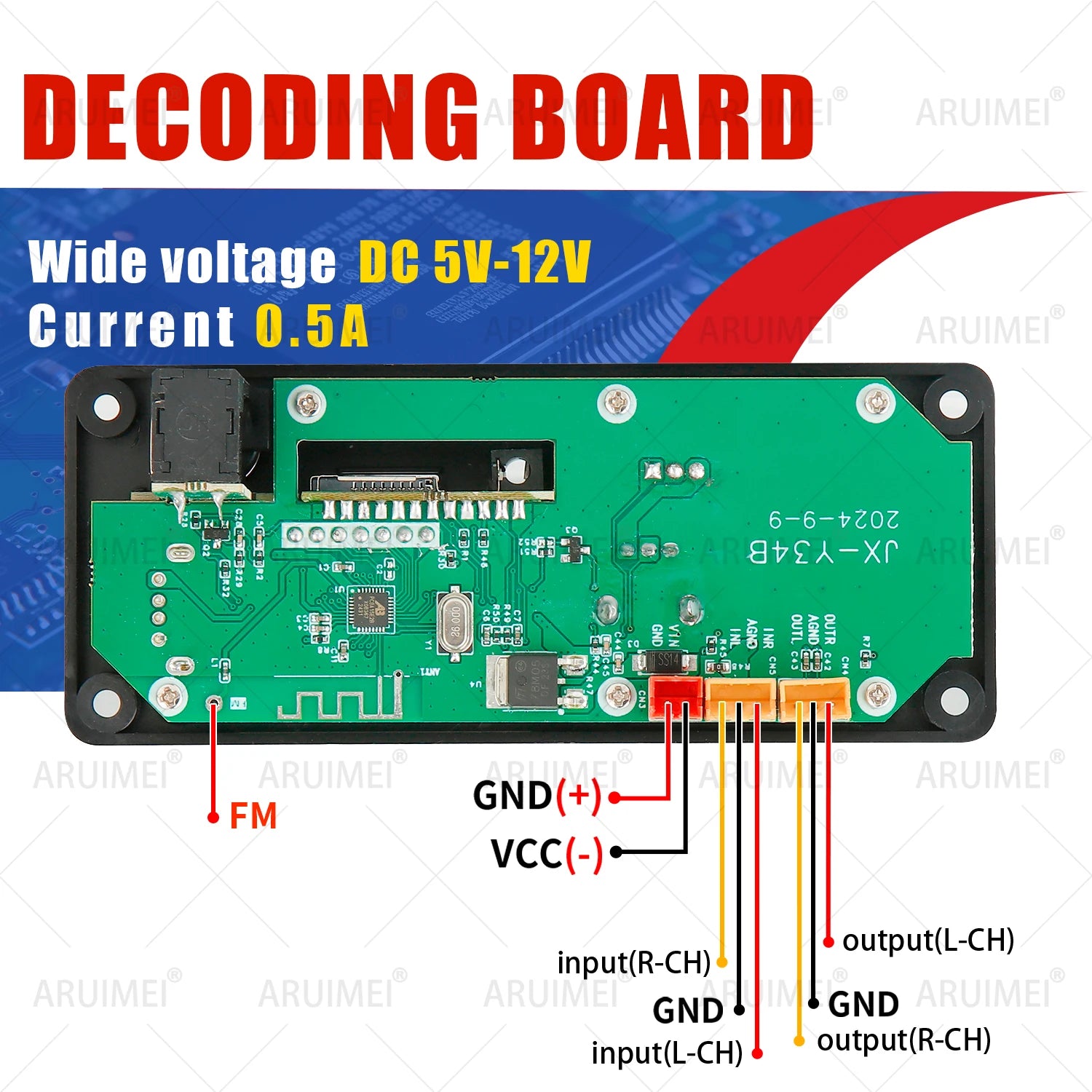

6. The power supply voltage supports between DC5V-12V and the current is around 0.5A. Not compatible with voltages below 5V.

7. It is not allowed to directly connect the speaker. It is necessary to connect the amplifier board before connecting the speaker for use.

8. Supports song format MP3

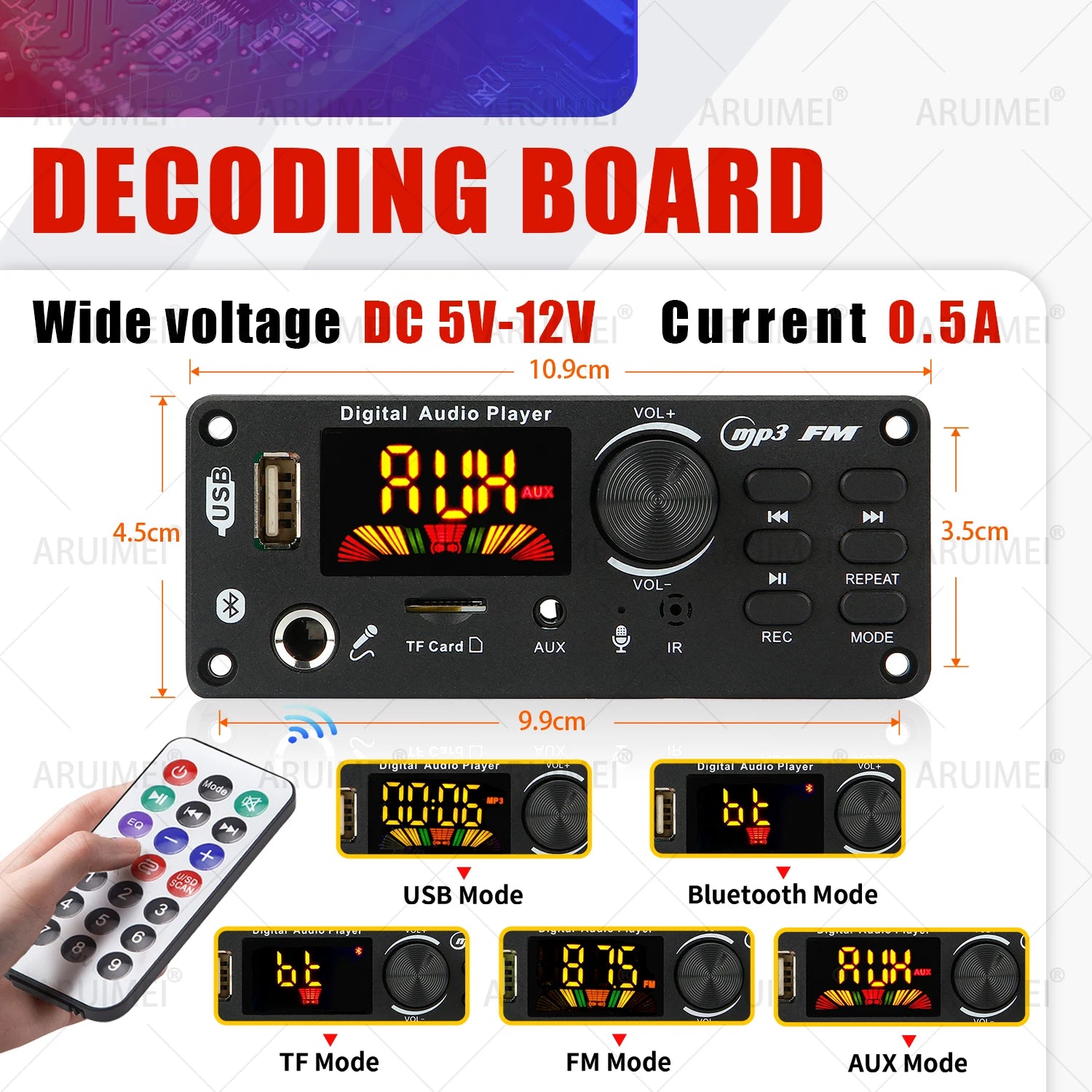

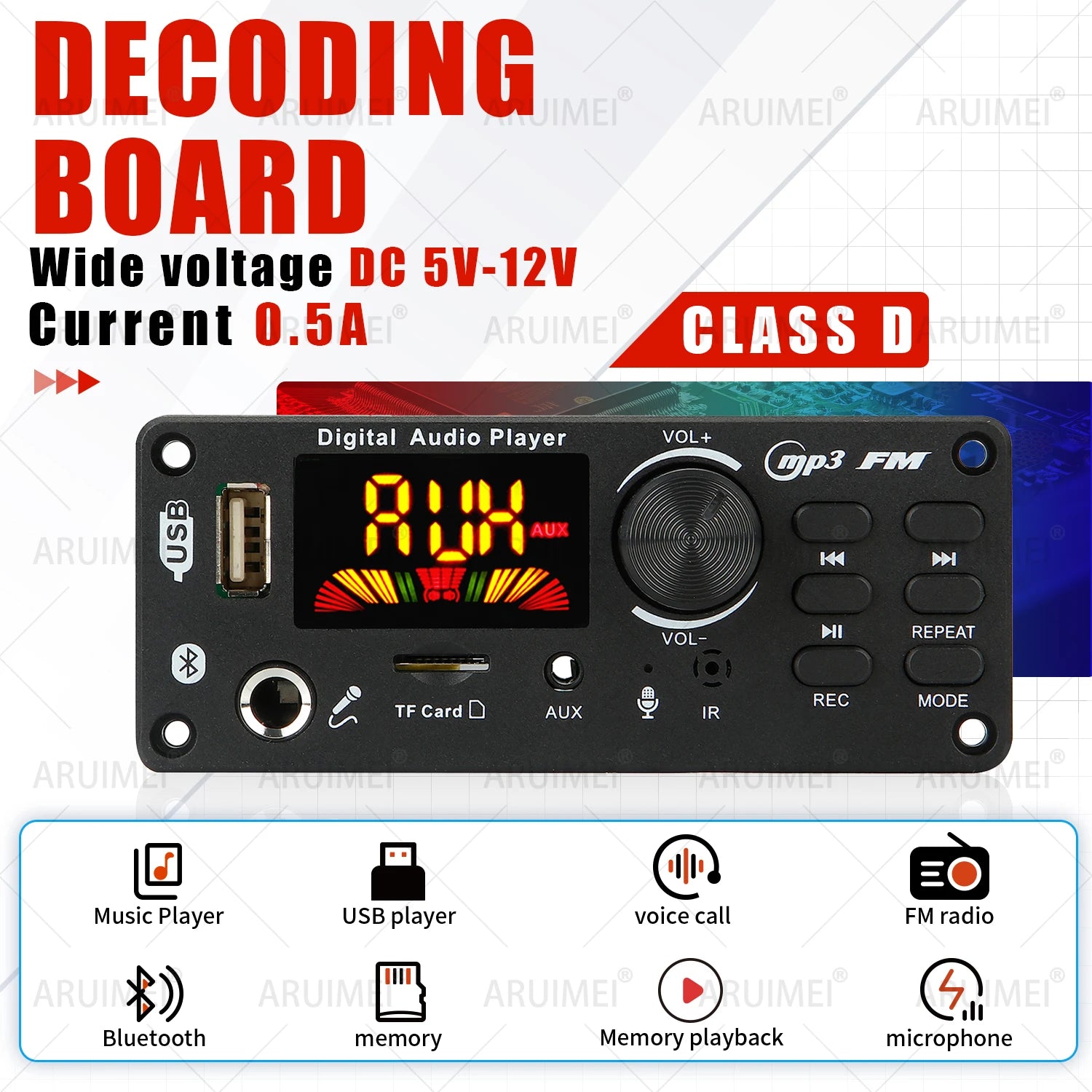

9. Main functions: MP3/USB/TF/LINE IN/FM/BLUETOTH/remote control/

11. Digital large color screen display

12. Radio FM frequency: 87.5-107.5 MHz

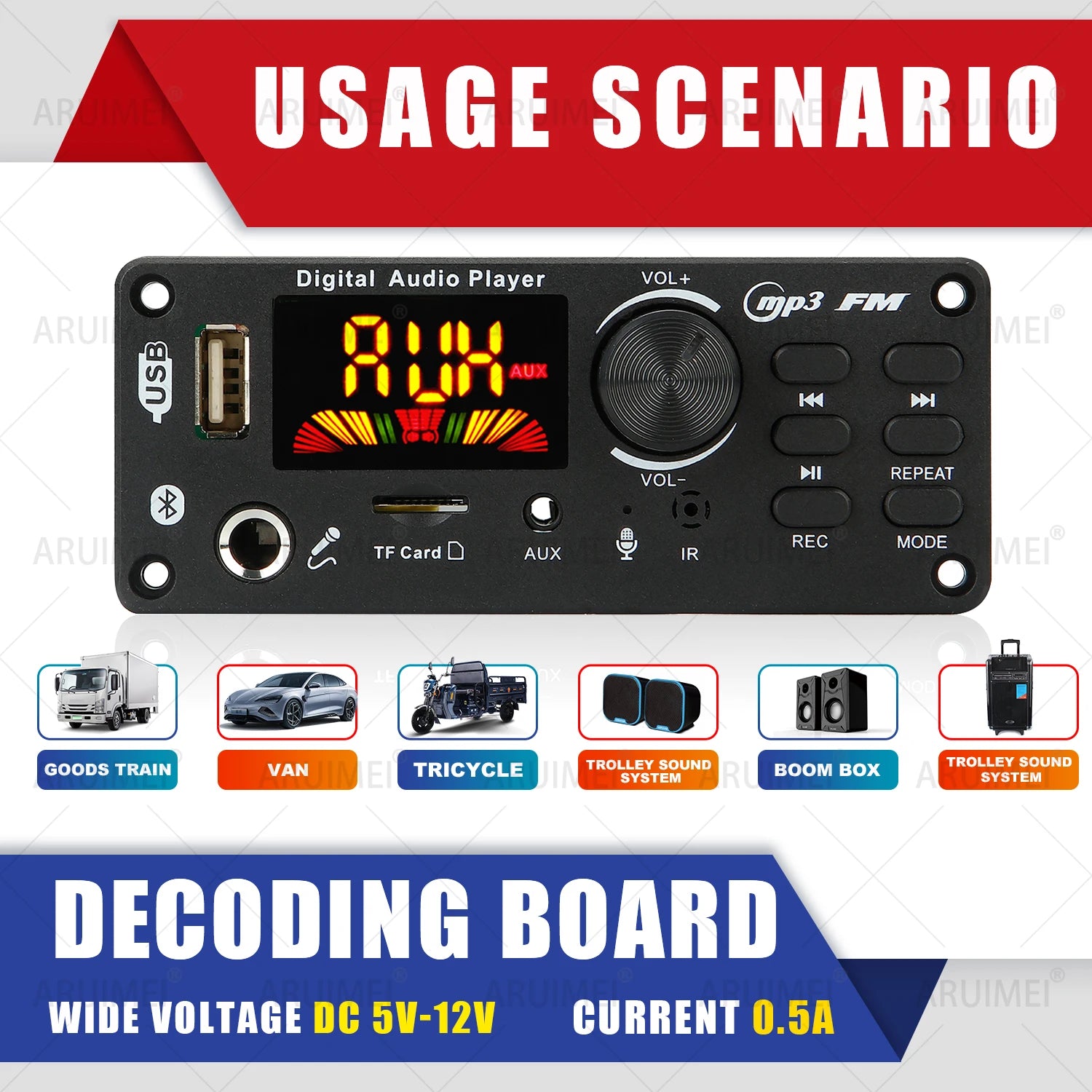

Key Function Description:

MODE: Switching between USB/TF/FM/AUX/BLUETOOL sound;

USB: Connect USB flash drive (maximum support 32GB)

TF: Connect TF storage card (maximum support 32GB)

VOL-: Short press to select the previous song; Long press to decrease volume

VOL+: Short press to select the next song; Long press to increase volume

REPEAT: Short press to switch between single and loop

REC: Short press to enter recording mode

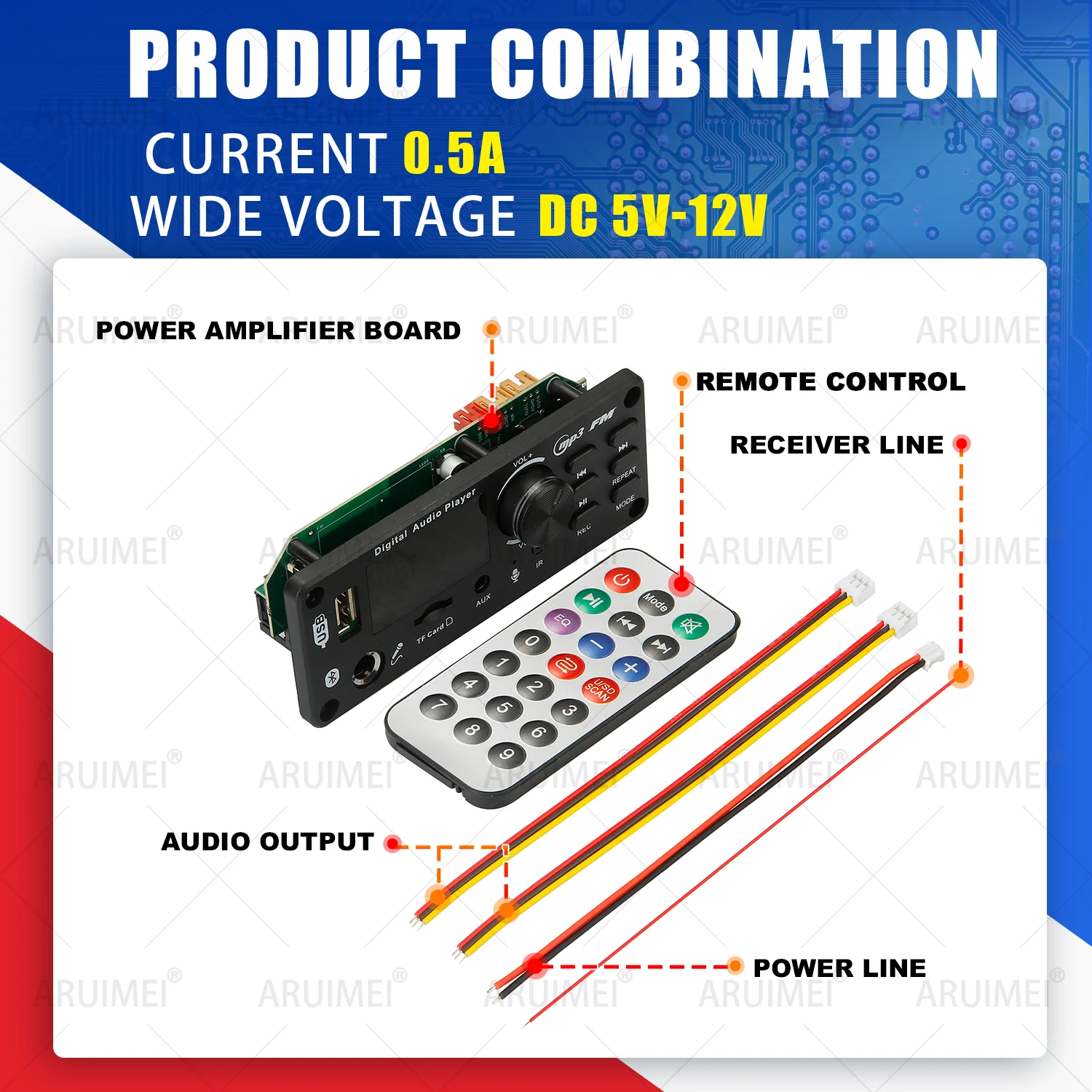

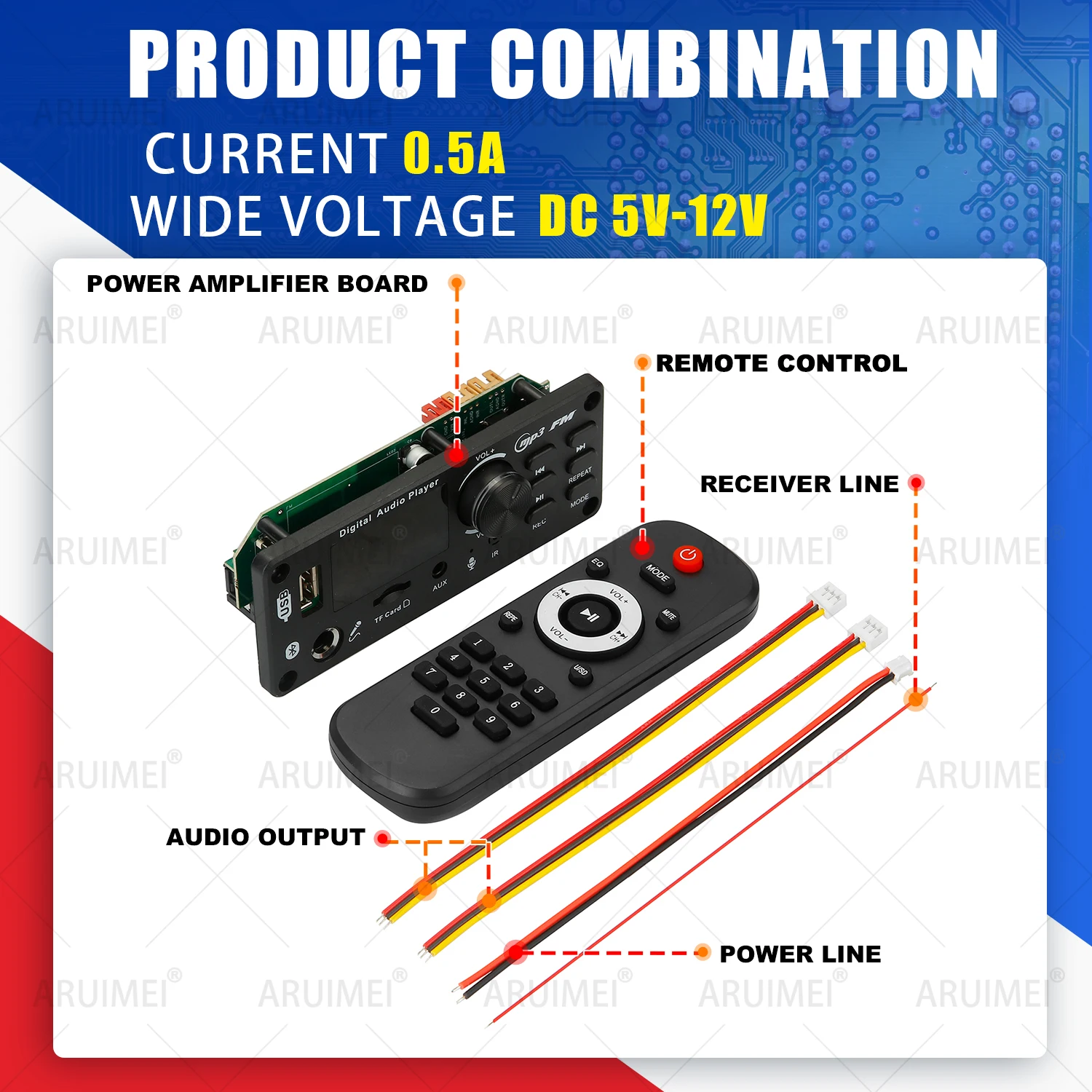

Package include:

1 X MP3 Decoder Board

1 x Remote control (Without the Battery)
